Using Maps For Spatial Records - Displaying Properties on the Map

🔎 Selecting a Property

1. Look up the Street first Properties (See Streets)

   • You must locate and highlight the relevant street in the BW grid.

   • Then click the Properties tab to list all properties linked to the selected street.

⚠️ Note:

• You can highlight a street of reference type 1 or 2 to access properties.

• If the street is of type 3 or 4, the Properties tab will not be visible.

---

🗺️ Displaying a Property

Once properties appear in the BW grid, there are several ways to display them on the map:

• From BW Grid (Right-Click Method)

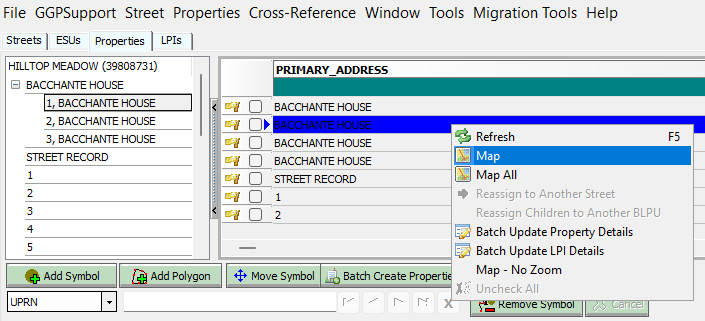

  • Select a property → Right-click → Choose Map from the pop-up menu.



• From BW Grid (Double-Click Method)

  • Double-click on the selected property record in the BW grid.

• From GGP View

  • Right-click on a property in the GGP View → Map it into the NGz grid.

  • If multiple properties exist at the same location, a list of UPRNs is displayed so you can select the correct property.



👉 Result: The system zooms in, highlights the property, and centres it in the display.

---

🗂️ Mapping All Properties in a Street

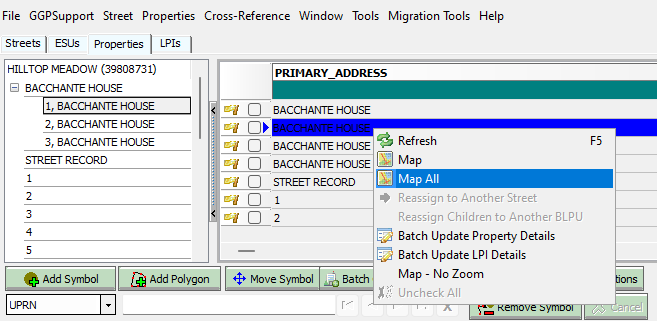

• Use the Map All function to display all properties associated with a street.

• This is often more useful than mapping the street alone, since it includes properties at the ends of the street that may otherwise be excluded.

How to Use:

1. In the BW grid → Right-click to open the pop-up menu.

2. Select Map All.



Reversing the Action:

• After activation, the option changes to Unmap All.

• Clicking this will:

  • Clear the spatial query.

  • Return the view to normal so you can display other street properties.
