Adding & Editing Properties - Adding a New Property

🏙️ Step 1: Select the Street

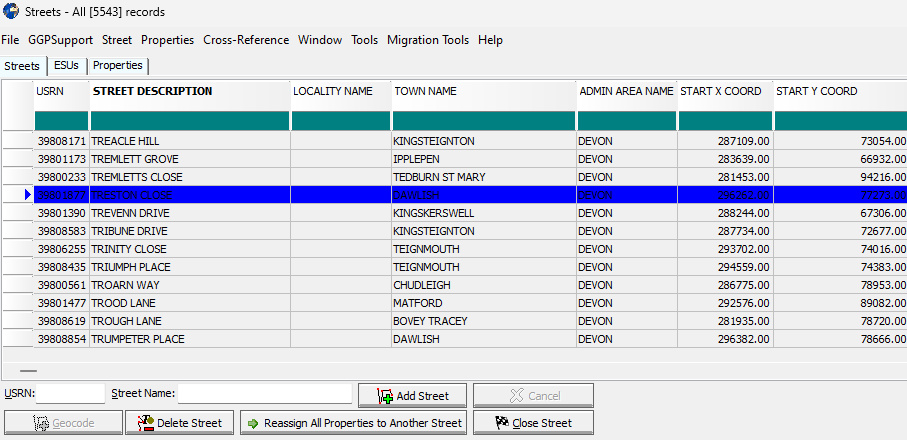

1. Identify the street to which the new property will be linked.

2. Double-click the street record so it is centered in the GGP map window.

💡 Tip:

• Always select the street to which the new BLPU and LPI should be assigned, not an existing property nearby.

• For example, if a new development is being added, the street may run along the other edge of the land. Ensure you click the correct street to maintain correct numbering.

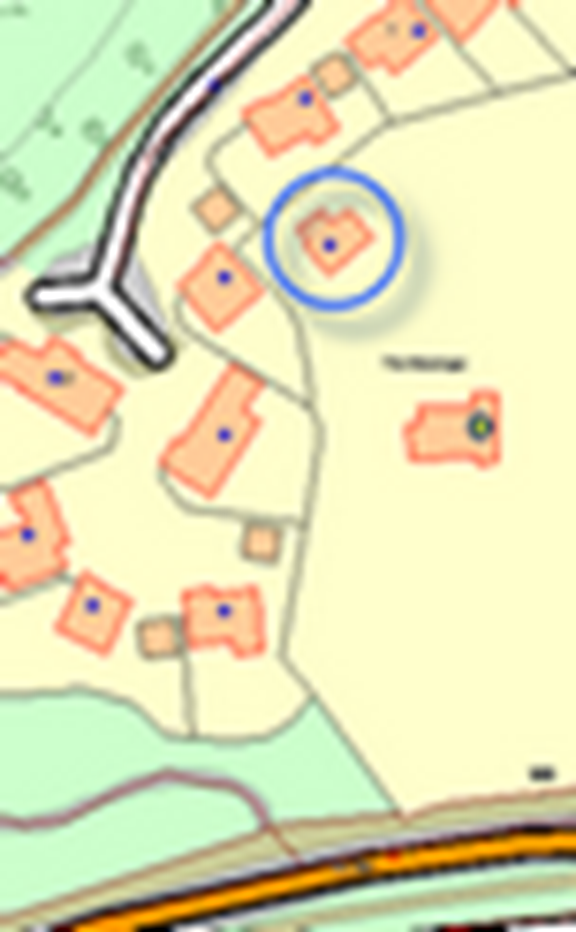

• In the example below, we wish to attach a new property to the Close (to the West), not the street of the existing building it is in the grounds of (which is to the South)



---

🏷️ Step 2: Switch to the Property Tab

• The Property tab displays all existing properties for the selected street.

---

🖊️ Step 3: Add a Symbol

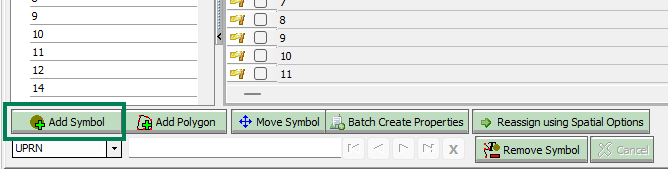

1. Click the Add Symbol button in the NLPG Editor.

2. If using polygons instead of point symbols, see Creating a Property with a Polygon.



---

📍 Step 4: Place the Symbol on the Map

• Follow the Editor status bar prompt to click or snap the symbol at the required location.

• In the GIS window:

  • Left-click to place the symbol manually.

  • Right-click to access the menu and snap the symbol to an existing feature.

• The symbol’s appearance depends on your default point settings.

---

✅ Step 5: Save the Symbol

1. Click the green tick on the GGP toolbar to save the graphic.

2. A new GGP data record window will appear corresponding to the symbol.

3. No data entry is required at this stage — click the green tick to save and choose Yes on the confirmation pop-up.



---

🗂️ Step 6: Enter BLPU Details

• The next step is to fill in the BLPU details window for the Gazetteer.
